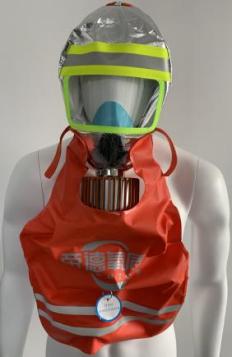

Tiden Oxygen Shield Isolated Self-generating Oxygen Respirator: This respirator is a fully isolated self-generated oxygen self-rescuer that take advantage of potassium superoxide to absorb carbon dioxide and water vapor exhaled by the human body to generate oxygen self-circulation for the human body to breathe.The device adopts one exhalation and two inhalation dual circuit circulation design. Its special fabrics and dual circuit circulation are made for internal control circulation heat dissipation, breathing smoothly and comfortably. With advantages of low breathing temperature, easy carrying, safety, comfort, reliability, this self-rescuer is especially suitable for restricted space and ground public security emergency field. When a disaster the relevant responsible personnel can put on it rapidly, dealing with the situation and escaping from the danger timely. The development of Tiden respirator has effectively solved the existing filter respirators’ "poor safety, complexity of use, low cost-effective ratio etc." problems. Compared with other bulky and complex air / oxygen respirators, Tiden respirator’s highlights are as follows: cost-effective, easy to carry (can carry more than one), no need for maintenance, novel appearance and so on. Its core indexes are better than the national standard and other similar products by about 50%.

Product classification and features:

1. Chemical oxygen firefighting self-rescuing breathing apparatus

Mainly used for self-rescue and escape from fire and other fires.

2. Programmable chemical oxygen respirator

Mainly used for self-rescue, escape and rescue from fire, etc.; short-term and frequent emergency repair and maintenance operations;

It is upgraded on the basis of firefighting self-rescuing breathing apparatus with higher level of protection, and is a high mobility product with maximum light weight and sealed protection;

The main equipment is reusable, the primary oxygen module supplies oxygen quickly, the airbag switches between dual forms to adapt to the scene, and the oxygen module is replaced in two seconds for longer range and better maneuverability.

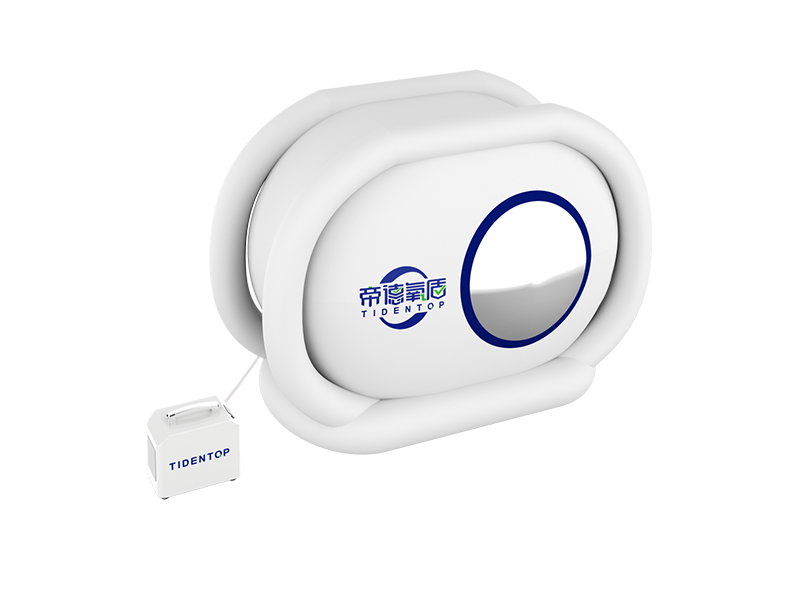

3. Micro-pressurized oxygen chambers for medical emergencies

Compared with the traditional oxygen chamber, it has the advantages of high mobility, low power consumption, light weight, pure oxygen source, strong environmental adaptability, and adaptation to anaerobic environment.

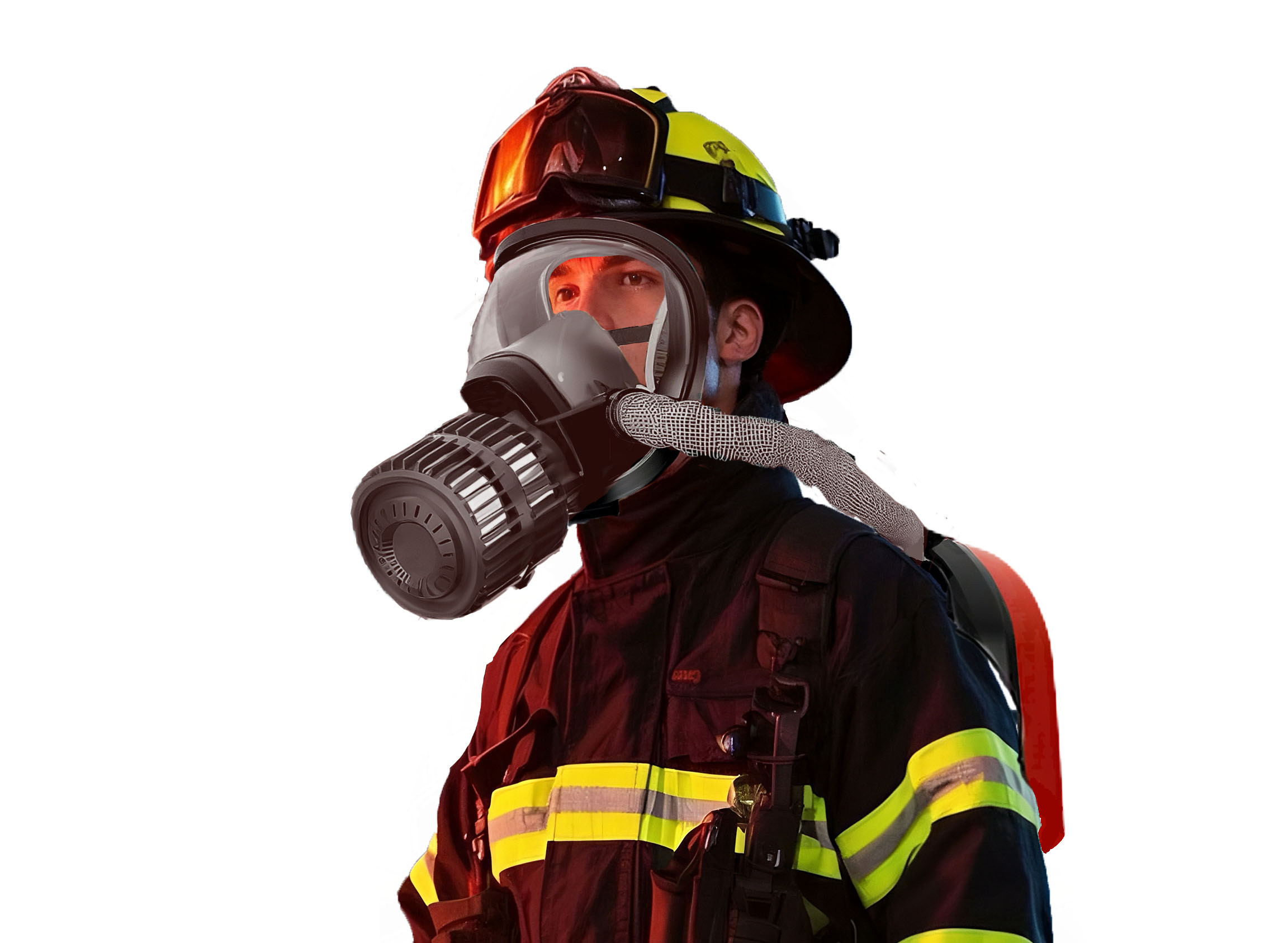

4. Long-range chemical oxygen breathing apparatus

Mainly used for continuous operation within 4 hours；

Compared with other operational air respirators, oxygen respirators are lighter in weight, smaller in size, more convenient to use, and do not require regular maintenance.

It also has intelligent detection, control, communication and positioning functions. Provide lasting protection for lasting operations.

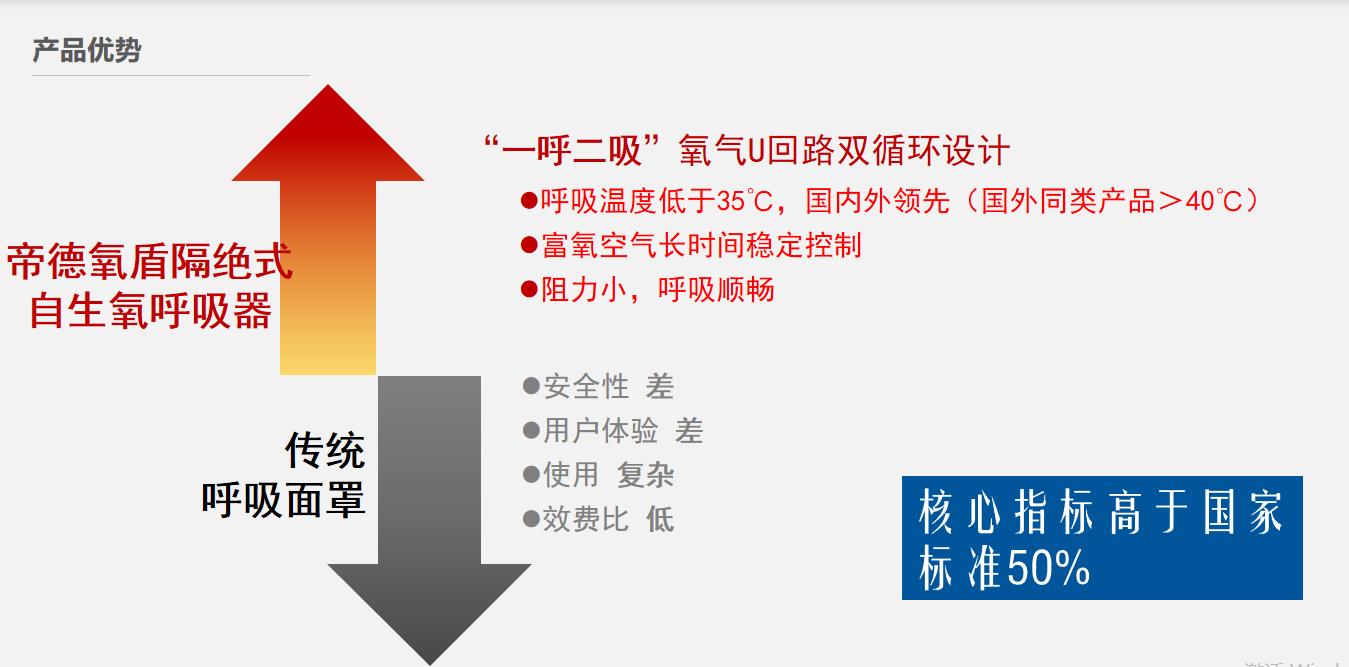

Product Highlights + Product Advantages：

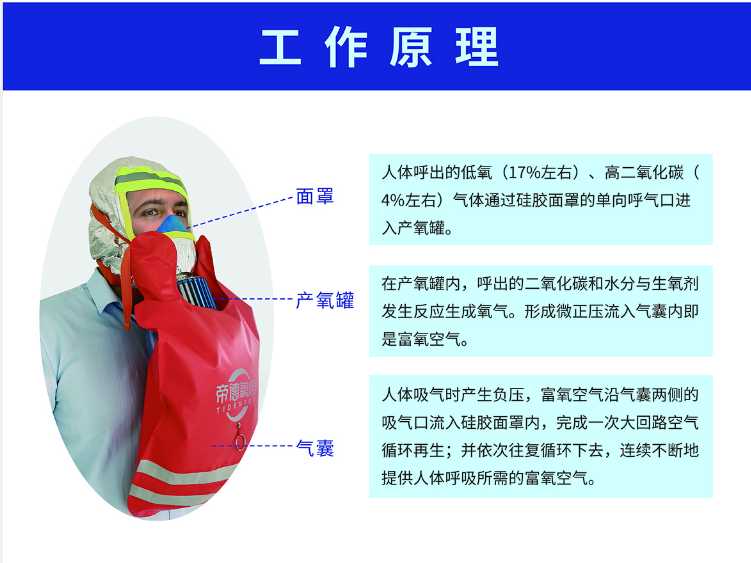

Working Principle：

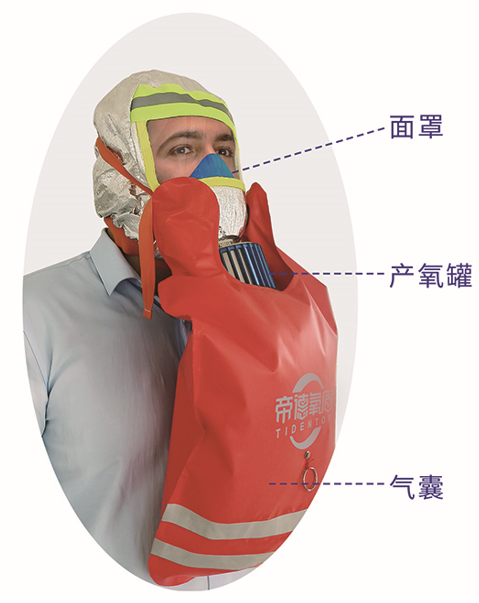

Low oxygen (around 17%) and high carbon dioxide (around 4%) gases exhaled by the human body enter the oxygen-producing tank through the unidirectional exhalation port of the silicone mask.

Inside the oxygen producing tank, the exhaled carbon dioxide and water react with the oxygen generator to produce oxygen. A slight positive pressure is formed and flows into the airbag, which is oxygen-enriched air.

Negative pressure is generated when the human body inhales, and the oxygen-rich air flows into the silicone mask along the inhalation ports on both sides of the airbag, completing a large loop of air circulation and regeneration; and the cycle goes on and on, continuously providing the oxygen-rich air needed for human respiration.

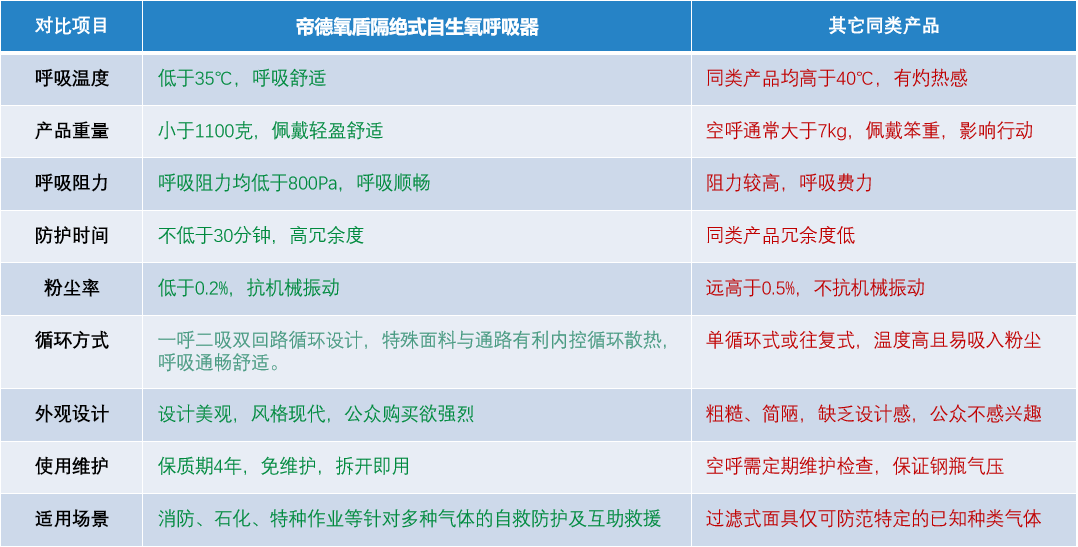

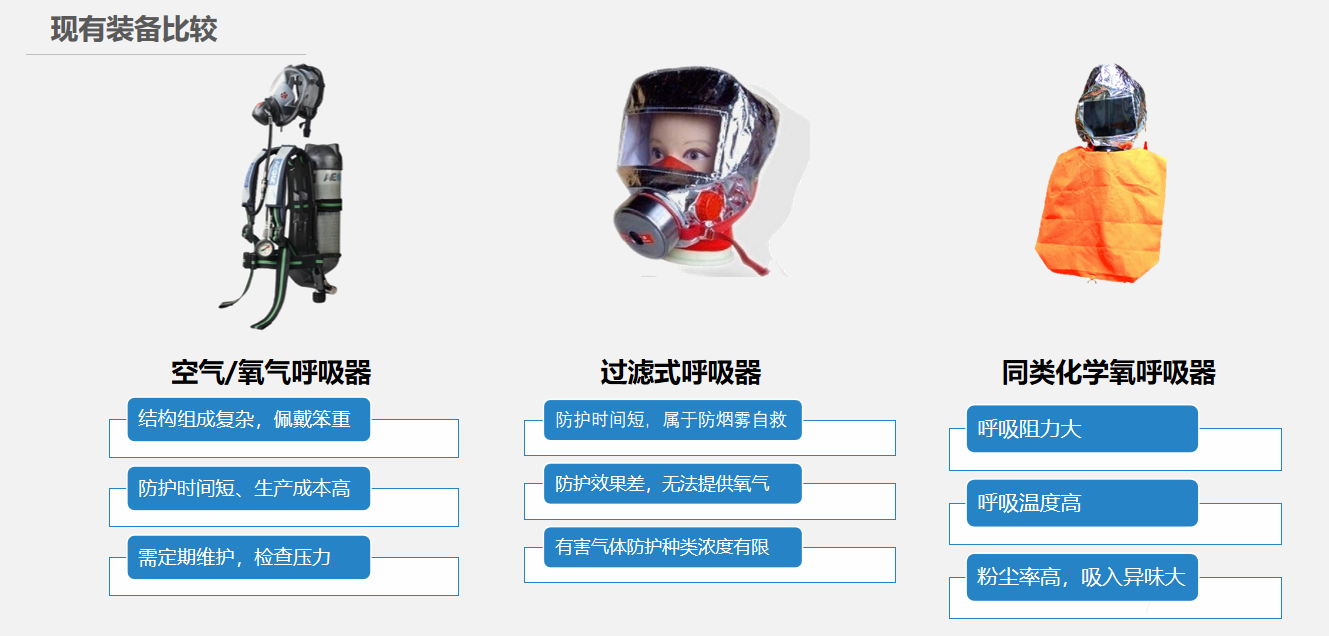

Product Comparison：

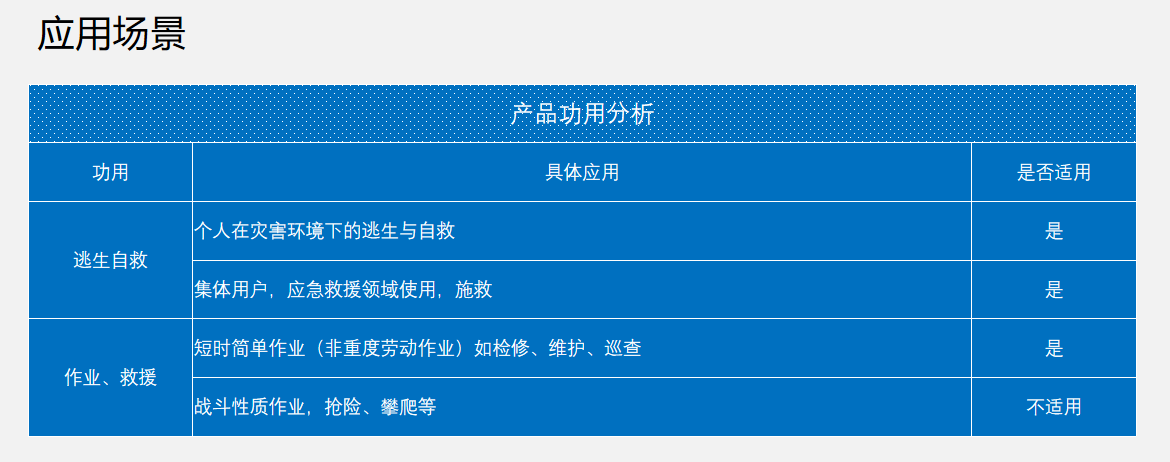

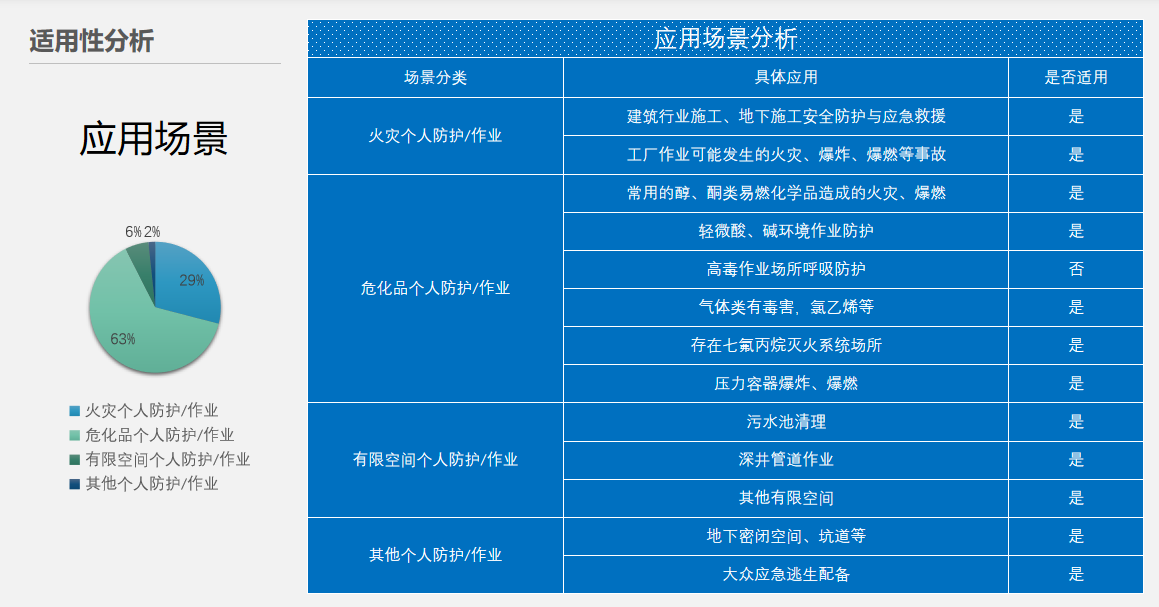

IV. Application Scenarios：

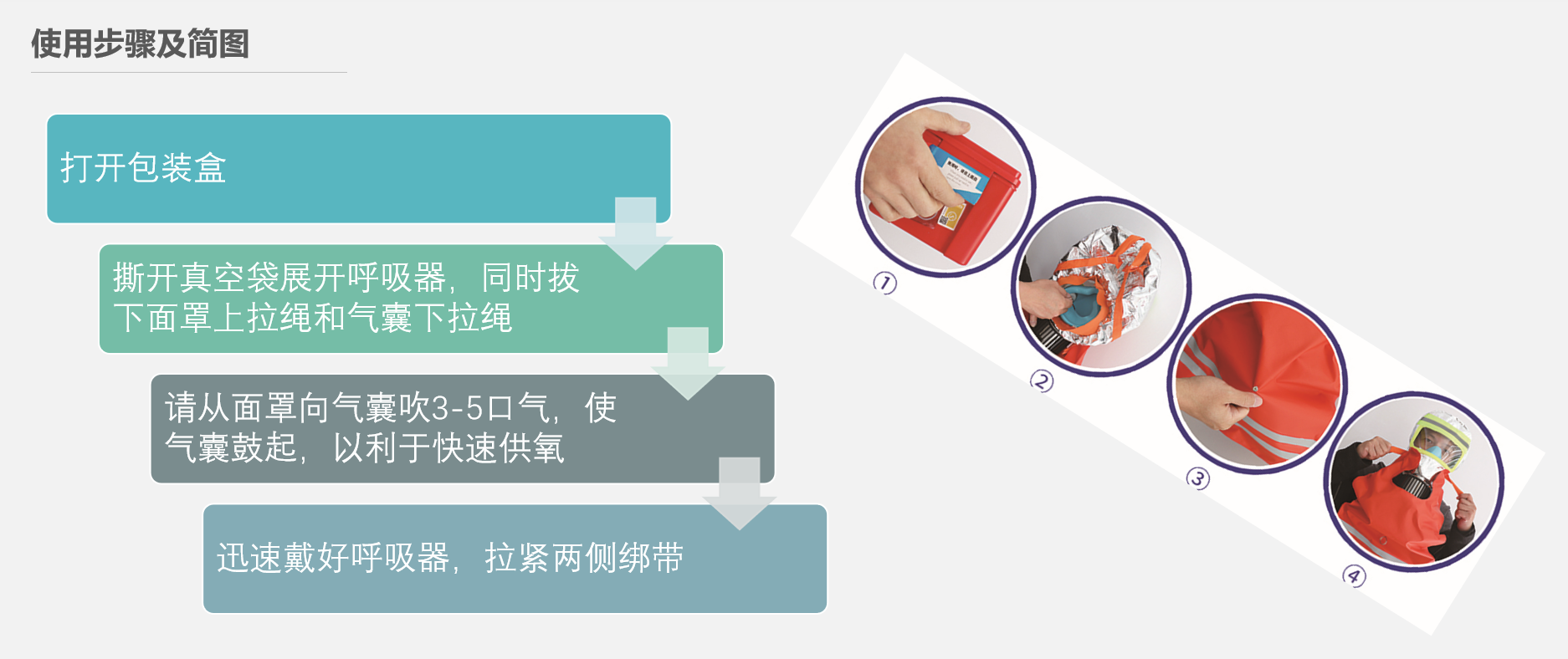

Usage

Application Promotion：
